Vibratory Feeder Controlles Manufacturer, Supplier, India

For Bowl / Linear feeders New Advance Version constant voltage, Constant frequency controllers for smooth vibration and constant feed rate irrespective of change in supply voltage and frequency for Genset application.

Frequency Adjustment for DCVCFSI-L :

Users can adjust output frequency of the controller to best vibration frequencv of the vibratory feeder to get smooth, quiet and energy saving feed effect.

Max Adjustable Output Voltage for DCVCF31-L :

Max Adjustable Output Voltage can be preset to protect the vibratory feeder from damage caused by high voltage.

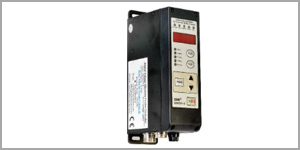

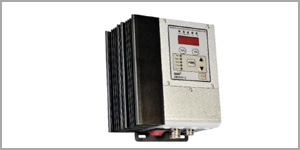

vibratory feeder controllers

190 x 55 x 100

Features :

Automatic Voltage Regulation :
Eliminate feed speed variation caused by mains voltage fluctuation.

Soft Startup :
In order to avoid sudden shock to the feed material and vibratory feeder, the controller can gently increase output voltage from 0 to the preset value when start up.

Over Current Protection :
if output current exceeds its rated value by mis-operation, the controller will stop its output to protect the controller and the vibratory feeder.

Over Heat Protection :
lf internal temperature of the controller gets too high, the controller will stop its output to protect itself.

Short-Circuit Protection : lf output of the controller is short-circuited, the fuse inside the controller will be blown to protect the controller and vibratory feeder from further damage.

Remote ON/OFF Control :
The controller has 2 groups of 0N/0FF control ports. Switch sensor or PLC can be connected to them to turn on/off the controller.

Remote Speed Control :
Output Voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, or a 1-5V DC signal

Item	Range		Unit	Description
Item	Min	Max	Unit	Description
Input Voltage	85	260	V	AC RMS Value
Output Voltage	0	260	V	Less than Input Voltage
Output Current	0	5	A	-
Output Frequency for DVC21	50/100 60/120		HZ HZ	Mains Frequency is 50Hz Mains Frequency is 60Hz
Output Frequency	40	400	HZ	DCVCF31-L
Output Waveform	Sine			DCVCF31-L
Output Waveform	Tangent Sign		-	DVC21
Voltage Adjustment Accuracy	1		V	-
ON/OFF Delay	0	20	S	-
ON/OFF Delay Accuracy	0.1		5	-
Soft Startup Time	0	10	s	-
DC Control Output Voltage	22	26	V	-
DC Control Output Current	0	200	mA	DC Output associated with ON/OFF Control
Standby Power Consumption	1.5	3	W	-
Display Method	5		digit	LED Digital Tube
Control Method	1-5		V	Remote Speed Control Volt
Control Method	Standard TT		-	Switching signal

Vibrator Feeder Controllers

We are Authorised Dealer, Distributor, Supplier of Vibrator Feeder Controllers and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.
