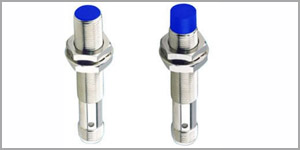

Inductive Proximity Switches - M12-4Pin-DC



We are Manufacturer, Supplier, Exporter of Inductive Proximity Switches - M12-4Pin-DC and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.

M12-4Pin-DC
M12-4Pin-DC

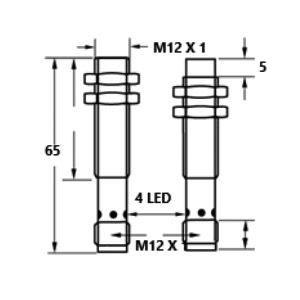

Diameter

            M12

m1 Flush Switching Distance

2mm

4mm

6mm

m2 -Flush Switching Distance

4mm

8mm

10mm

Housing Material

Nickel plated brass

With LED With LED    m2 Without LED

m1

Max  Load  Current

250mA

Supply Voltage

10-30 Volt DC

Switching  Frequency

800Hz

Response Time

0.2ms/0.2ms

Protecting  category

IP67

Operating Temperature

-25ºC- +70ºC

Short Circuit Protection

Yes

Connecting Type

M12 Connector

DC 3 wire 10-30V  NPN N.O.

STI - M12NO- 2.5/4-C

DC 3 wire 10-30V  NPN N.C.

STI -M12NC- 2.5/4-C

DC 3 wire 10-30V  PNP N.O.

STI - M12PO- 2.5/4-C

DC 3 wire 10-30V  PNP N.C.

STI - M12PC- 2.5/4-C





Request a Quote
