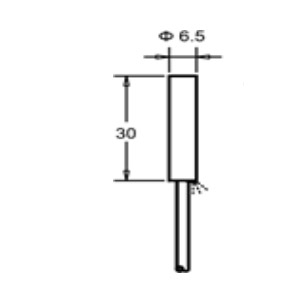

Diameter |
6.5 |
|
 |
Switching Distance, Sn: mm |
1.5 mm |
Housing Material |
Stainless steel/Brass |
|
|
Max Load Current |
250mA |
Supply Voltage |
10-30 Volt DC |
Switching Frequency |
2KHz |
Response Time |
0.1ms/0.1ms |
Protecting category |
IP67 |
Operating Temperature |
-25ºC- +70ºC |
Short Circuit Protection |
Yes |
Connecting Type |
2mtrs,3core pvc cable |
DC 3 wire 10-30V NPN N.O. |
ISS-S6.501N-A1VS2 |
DC 3 wire 10-30V NPN N.C. |
ISS-S6.501N-B1VS2 |
DC 3 wire 10-30V PNP N.O. |
ISS-S6.501P-A1VS2 |
DC 3 wire 10-30V PNP N.C. |
ISS-S6.501P-B1VS2 |
non-Flush
