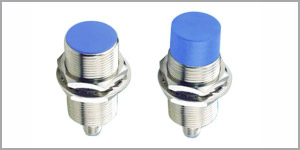

Inductive Proximity Switches - M30X65-4Pin-DC

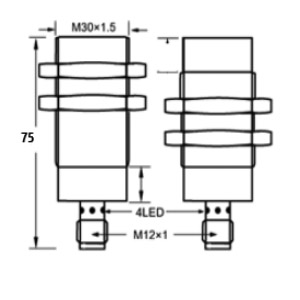

Diameter

            M30

Flush Switching Distance

10mm

15mm

22mm

non-Flush Switching Distance

12mm

16mm

40mm

Housing Material

Nickel plated brass

With LED     Without LED

Max  Load  Current

250mA

Supply Voltage

10-30 volt DC

Switching  Frequency

300Hz

Response Time

0.5ms/0.5ms

Protecting  category

IP67

Operating Temperature

-25ºC- +70ºC

Short Circuit Protection

Yes

Connecting Type

M12 Connector

DC 3 wire 10-30V  NPN N.O.

STI-M30NO-10/12-C

DC 3 wire 10-30V  NPN N.C.

STI-M30NC-10/12-C

DC 3 wire 10-30V  PNP N.O.

STI-M30PO-10/12-C

DC 3 wire 10-30V  PNP N.C.

STI-M30PC-10/12-C
