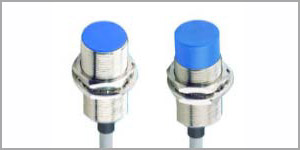

Inductive Proximity Switches - M30 X 65-3Wire-DC



We are Manufacturer, Supplier, Exporter of Inductive Proximity Switches - M30 X 65-3Wire-DC and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.

M30 X 65-3Wire-DC
M30 X 65-2Wire-AC

Diameter

            M30

Flush  Switching Distance

10mm

15mm

22mm

 non-Flush Switching Distance

12mm

16mm

40mm

Housing Material

Nickel plated brass

With LED     Without LED

m1

Max  Load  Current

250mA

Supply Voltage

10-30 Volt DC

Switching  Frequency

150KHz

Response Time

1ms/1ms

Protecting  category

IP67

Operating Temperature

-25ºC- +70ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

DC 3 wire 10-30V  NPN N.O.

STI- M30NO-10/12

DC 3 wire 10-30V  NPN N.C.

STI- M30NC-10/12

DC 3 wire 10-30V  PNP N.O.

STI- M30PO-10/12

DC 3 wire 10-30V  PNP N.C.

STI- M30PC-10/12
