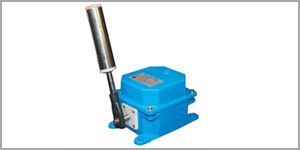

Belt Sway Switches

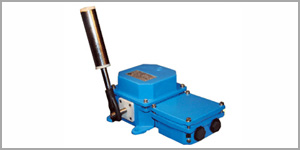

We are Manufacturer, Supplier, Exporter of Belt Sway Switches, Belt Sway Switch Junction Boxes and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.
ORDERING CODE :
- STBS - 10 - 11 - 1NO + 1NC - CA
- STBS - 10 - 22 - 2NO + 2NC - CA
ADD ON :
- JB - JUNCTION BOX.
- L - INDICATION LAMP.
- MF - MECHANICAL FLAG.
- DX - SS ROLLER WITH BALL BEARING.
ENCLOSURE :
- CA - CAST AL.
- CI - CAST IRON.
- IP - IND. POLYMER.
- FLP - FLAME PROOF.
Features :
- Heavy duty enclosures for dusty environment with IP 65
- Ball/bush bearing options for Roller & Cam Shaft
- Cast Al/Cast Iron/Ind. Polymer/Flame Proof
- Contact combination 1N0+1NC/ 2N0+2NC
- Retaining type screws
- Models available with Junction box/Indicating Lamp
- Robust spring to absorb impact from belt
- Heavy duty contacts 10 AMP @ 110/240/500 Volt As
- Wide over travel of the roller is permissible without damaging Switch element

Belt Sway Switches
