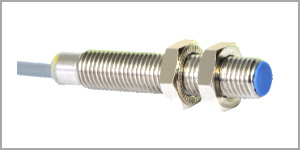

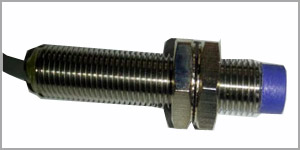

Inductive Proximity Switches - M8 X 45-3Wire-DC



We are Manufacturer, Supplier, Exporter of Inductive Proximity Switches - M8 X 45-3Wire-DC and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.

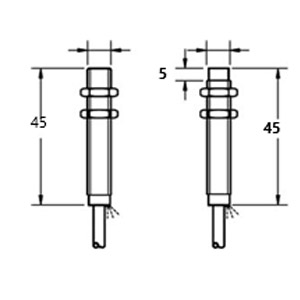

M8 X 45-3Wire-DC
M8 X 45-3Wire-DC
M8 X 45-3Wire-DC

Diameter M8

m1 Flush   Switching Distance

1mm

2mm

3mm

m2 non-Flush Switching Distance

2mm

4mm

6mm

Housing Material

Stainless steel/Brass

With LED With LED  Without LED Without LED

m1

Max  Load  Current

250mA

Supply Voltage

10-30 Volt DC

Switching  Frequency

1KHz

Response Time

0.1ms/0.1ms

Protecting  category

IP67

Operating Temperature

-25ºC- +70ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

DC 3 wire 10-30V  NPN N.O.

STI- M8NO- 1.5/2

DC 3 wire 10-30V  NPN N.C.

STI- M8NC- 1.5/2

DC 3 wire 10-30V  PNP N.O.

STI- M8PO- 1.5/2

DC 3 wire 10-30V  PNP N.C.

STI- M8PC- 1.5/2
