Vibrator Controllers CUH Make - SDVC20-S


We are Authorised Dealer, Distributor, Supplier of Vibrator Controllers CUH Make - SDVC20-S and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.


SDVC20-S

FEATURES :
Automatic Voltage Regulation : Eliminate feed speed variation caused by mains voltage fluctuation.
Soft Startup : In order to avoid sudden shock to the feed material and vibratory feeder, the controller can gently increase output voltage from 0 to the preset value when startup.
Preset Speeds : 4 preset feed speeds can be stored and output by external short-circuit signal.
Remote ON/OFF Control : The controller has 2 groups of ON/OF control pins. Switch sensor ot PLC can be Connected to them to turn on/off the controller.
Photoelectric ON/OFF Control : The CUH Intelligent Photoelectric Sensor can be conrected to turn on/off the controller.
Remote Speed Control : Output Voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, or a 1·5V DC signal.
DC Control Output : The controller can output low voltage Dc power associated with logical relation setting of tne ON/OFF Control to drive a solenoid, an electrical relay or other exiernal devices.
Overheat Protection : If Internal temperature of the controller gets too high. the controller will stop its output to protect itself.
Overcurrent Protection : If output current exceeds its rated value by misoperation, the controller will stop its output to protect the controller and vibratory feeder.
Short-Circuit Protection : If output of the controller is short-circuited, the fuse inside the controller will be blown to protect the controller and vibratory feeder from further damage.

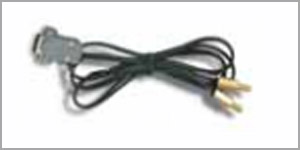

Optional Accessorie
Optional Accessorie

  • Intelligent Photoelectric Sensor (1.2m)




Dimensions: 111*76*48.5(L*W*H, mm)

Weight: 285g (without accessory)






TECHNICAL SPECIFICATION

Item

Range



Unit



Description

Min

Max

Input voltage

85

260

V

AC RMS Vaule

Output voltage

0

260

V

Less than Input voltage

Output Current

0

5

A


Output Frequency 50/100 HZ Mains Frequency is 50Hz
60/120 HZ Mains Frequency is 60Hz

Output Power

0

1100

VA



Output Waveform

Tangent Sine





Voltage adjustmen Accuracy 1 V
On/OFF Delay Accuracy 0 20 s
ON/OFF Delay Accuracy 0.1 s
Soft Startup Time 0 10 s
DC Control output Voltage 11 13 V DC output associated with ON/OFF control
DC Control output current 0 200 mA
Stand by Power Consumption 1.5 3 w
Display Method 4 Digit LED Digital Tube







Control Method

1-5 V

Remote Speed

Control Voltage

Standard TTL Electric Level   Switching Signal
/   4 Buttons + LED screens

Work Space
Temperature

-10

60

°C



Non-Condensing

Work Space Humidity

10

85

  %
